Description:

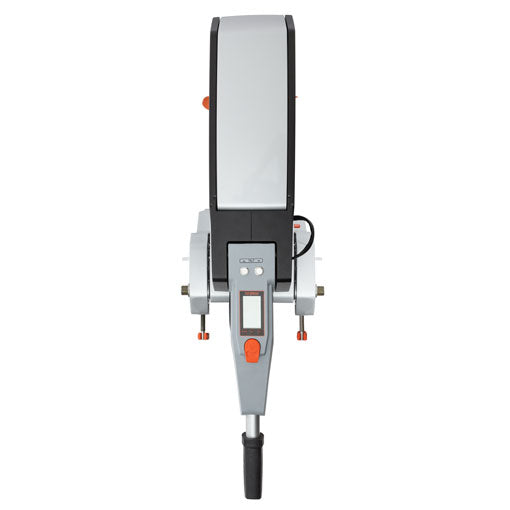

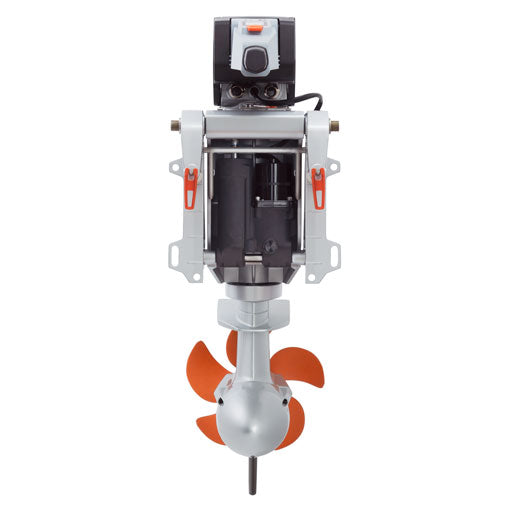

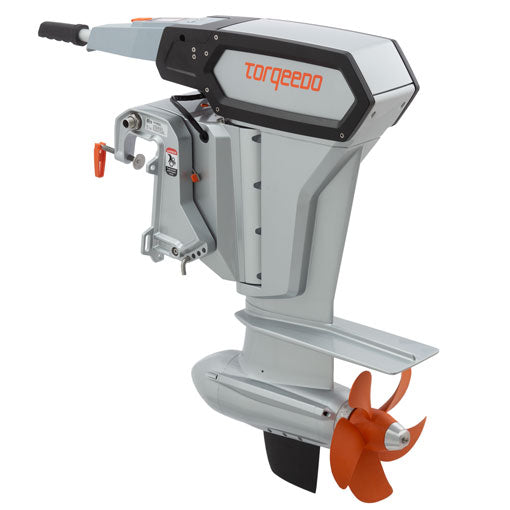

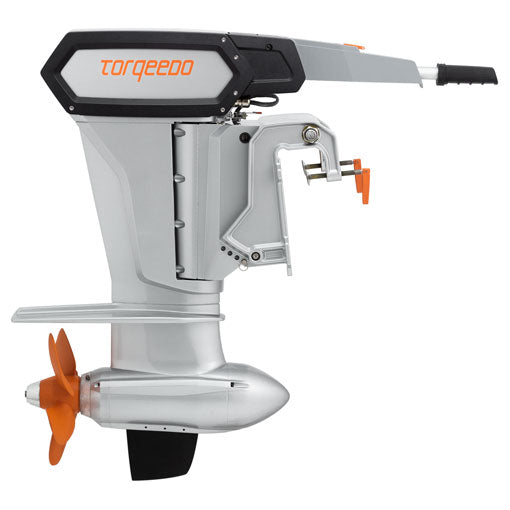

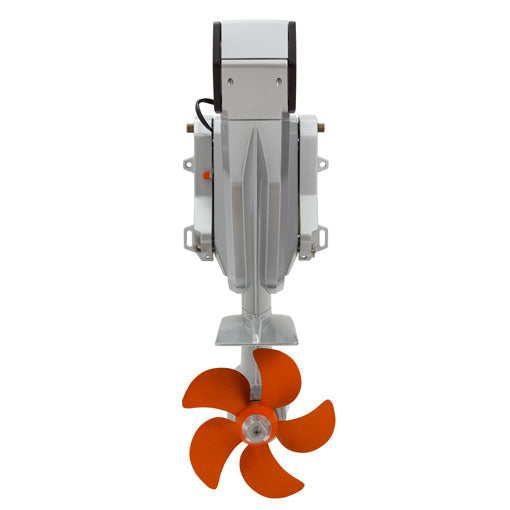

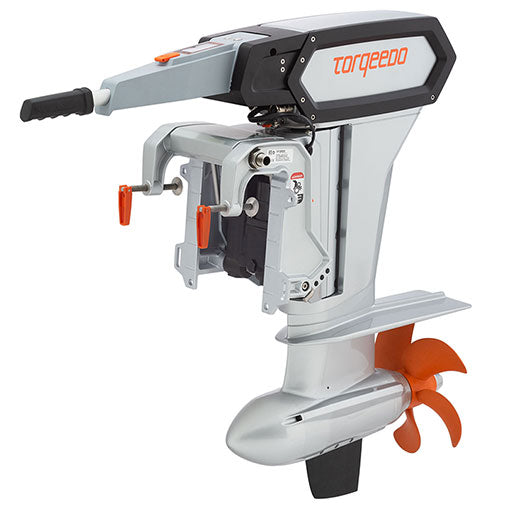

TORQEEDO Cruise 10.0 T

Electric outboard for motorboats and sailboats up to 10 tons

Product Description:

• Tiller-equipped version of the Cruise 10.0
• 12 kW peak output, 10 kW continuous output – powerful propulsion comparable to a 20 HP combustion engine
• Intelligent on-board computer and the full convenience of a Torqeedo electric drive system
• Electric tilting device for ease of operation
• Easy handling thanks to low-voltage level (48 Volt)
• Very robust design – corrosion-protected, sea water-capable and completely waterproof (IP67)
• Slimline construction - elegant and modern
• Versions: short shaft S: 38.5cm shaft length, long shaft L: 51.2cm shaft length, extra long shaft XL: 63.9cm shaft length
• Weight: 60.3 kg (S), 61.8 kg (L) , 63.0 kg (XL)
• To operate the Cruise 10.0 with more than two Power 48-5000 batteries, please contact your Torqeedo dealer
• Please note that the engine power is reduced to 6 kW when operating with only one Power 48-5000 battery

Cruise motors are the electric outboard motor of choice for motorboats, dinghies and commercial users. All Cruise systems have a built-in GPS with onboard computer and display with speed and input power, state of charge and remaining range, with a compact, low-drag, and lightweight pylon due to advanced helical gear design. Cruise 10.0 T is a tiller-equipped 48-Volt, 20 horsepower-equivalent outboard perfect for boats up to 10 tons.

Cruise 10.0 T – Benefits:

• High-efficiency outboard with 10,000 W input power, equivalent to the thrust of a 20 HP petrol outboard
• Pair with two Power 48-5000 for maximum performance and accurate range/runtime functionality
• Also compatible with third-party batteries (48-Volt) but careful matching to motor power requirements is needed and addition of cable set part number 1979-00 is required: Power 48-5000 is strongly recommended for best motor performance
• T models are equipped with tiller control with display screen and magnetic kill switch (included in scope of delivery)
• Rugged pylon with integral fin – extra protection when running aground
• Highest-grade seawater-proof aluminum for long service life, even in the harshest conditions
• Comprehensive galvanic corrosion protection through careful matching of all materials and meticulous isolation of materials with different electrochemical properties - ships with anode set for fresh and saltwater

Range

Cruise 10.0 T with 2 x Power 48-5000

* Depends on type of boat, load, propeller and conditions. Speed and range indications do not represent a legal guarantee.

Information on Range and Speed

For a displacement boat making way through the water, the required propulsive power increases in proportion to the cube of the speed. This means that if you want to double your speed, you need eight times as much power.

And vice-versa, a small reduction in speed is enough to increase the achievable range substantially.

The Torqeedo Cruise's on-board computer calculates the remaining range constantly, by linking the motor's consumption data with the charging level of the batteries, and the speed over the ground from the GPS. This allows you to read the remaining range in real time from the motor display or the smartphone app TorqTrac.

Specs

Torqeedo static thrust measurement is based on internationally accepted ISO standards. Static thrust figures for conventional trolling motors are typically measured differently, which results in higher values. To compare Torqeedo static thrust data with conventional trolling motors, add approximately 50% to the Torqeedo static thrust values.

ORDERING INFORMATION

Item Number

Cruise 10.0 TS (Short Shaft): 1243-20 | EAN: 4260113696194 Cruise 10.0 TL (Long Shaft): 1244-20 | EAN: 4260113696200 Cruise 10.0 TXL (Long Shaft): 1245-20 | EAN: 4260113696217

• Equipment included: Motor with tiller control and integrated on-board computer with display, emergency stop magnetic chip, connection cable set for two Power 48-5000 batteries (total length approx. 4.5 m) incl. main switch and battery terminal screws, 5-pin data cable (5m), standard propeller v22/p10k and sacrificial anodes (Al)
• The TorqLink Gateway Set (2217-00) is required for operation, this is not included in the scope of delivery
• Take a look at the Cruise Info Tool for helpful information
• Warranty: 2 years for non-commercial use
